solar photovoltaic junction box

Model: dk-510
Place of Origin: Zhejiang,China (Mainland)
Application: Solar Thermal
Type: Others
Pipe Material: Others
Brand Name: Dongke
solar junction box: photovoltaic junction box
Rated Voltage: 1000VDC
Ambient Temperature Range: -40℃~+85℃
Overall Size: 95*98*20mm
Insulation Material: PPO
Contact Material: Copper,Tin-Plated
Rated curren: 10A
Flame Resistance: 5VA

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOBProduction Capacity:5000 Set/Sets per Day
Payment Terms:L/C, T/TPacking:carton
Means of Transport:OceanDelivery Date:7-15 days after the...

solar photovoltaic junction box

 The junction box provides users with a safe, fast, reliable connectivity solutions, the junction box suitable for a combination of solar panel connection.

advantage and features:

1. Suitable for outdoor use under harsh environmental requirements ;
2. Anti-ading;
3. with competitive price.

 Main Technical Data:

 1.Rated Voltage:
 1000VDC;
 2. Ambient Temperature Range:
 -40℃~+85℃.
 3. Overall Size:
 95*98*20mm.

MOQ: 1 ROLL. DELIVERY TIME: 7~15 DAYS AFTER RECEIVE YOUR DEPOSIT.


Certifications



DK-510

Rated Voltage



1000VDC

Ambient Temperature Range



-40℃~+85℃

Safety Class



ClassⅡ/Ⅲ

Protection Degree



IP67

Wire Size Range



4mm²

Flame Resistance



5VA

Waterproof Structure



Pre-Potting Sealant+Seal Ring

Width Of Ribbons



Up to 8mm

Centeriline Spacing Between Terminals





16mm

Connection Method



Spring Clamping

Insulation Material



PPO

Contact Material



Copper,Tin-Plated

Overall Size



95*98*20mm

Optional Connector



PV-GZ0601-1,H4

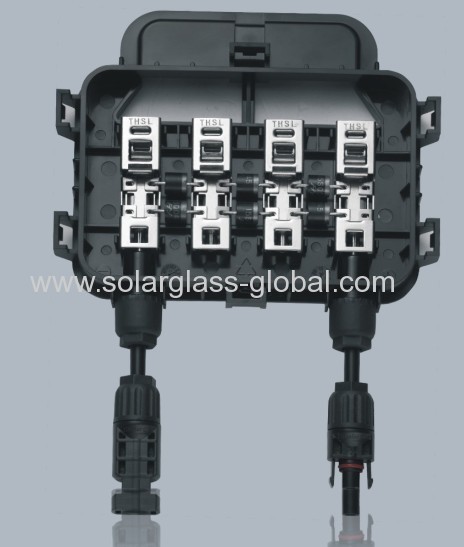

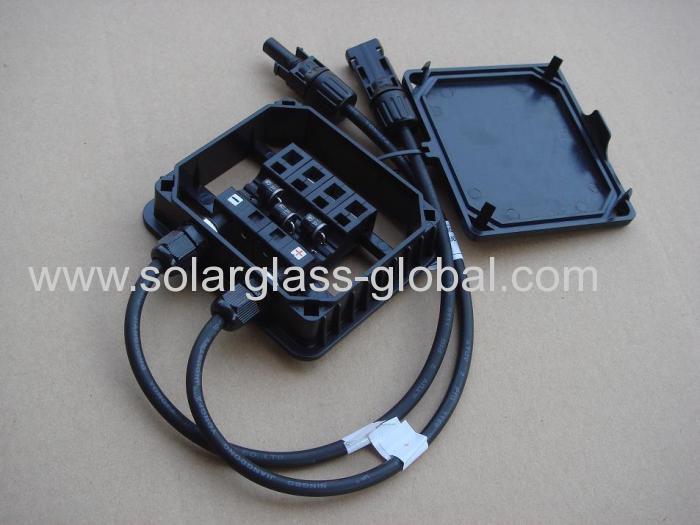

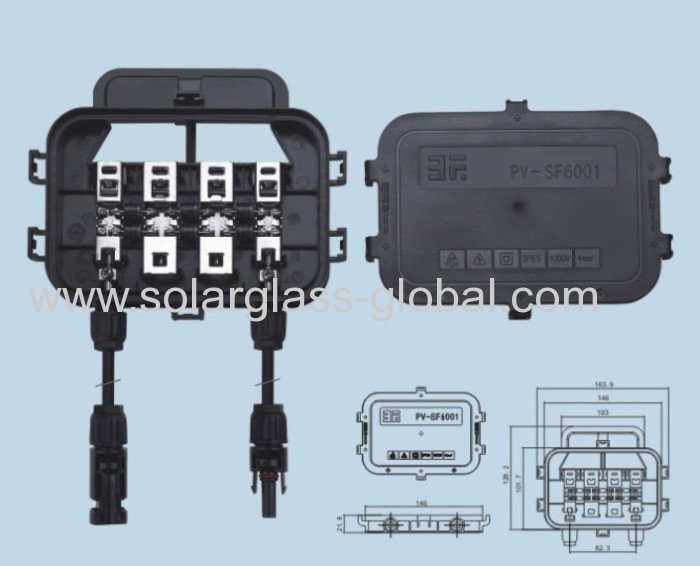

 Products pictures



Application

Packaging & Shipping:

Our Services:

1.Reply your inquiry in 24 working hours.

2.Customized design is avaliable ,OEM is welcome .

3.Delivery the goods to our customer all over the world with speed and precision.

4.Offer customer the products with good quality and competitive price .


Category: Junction Box


«
