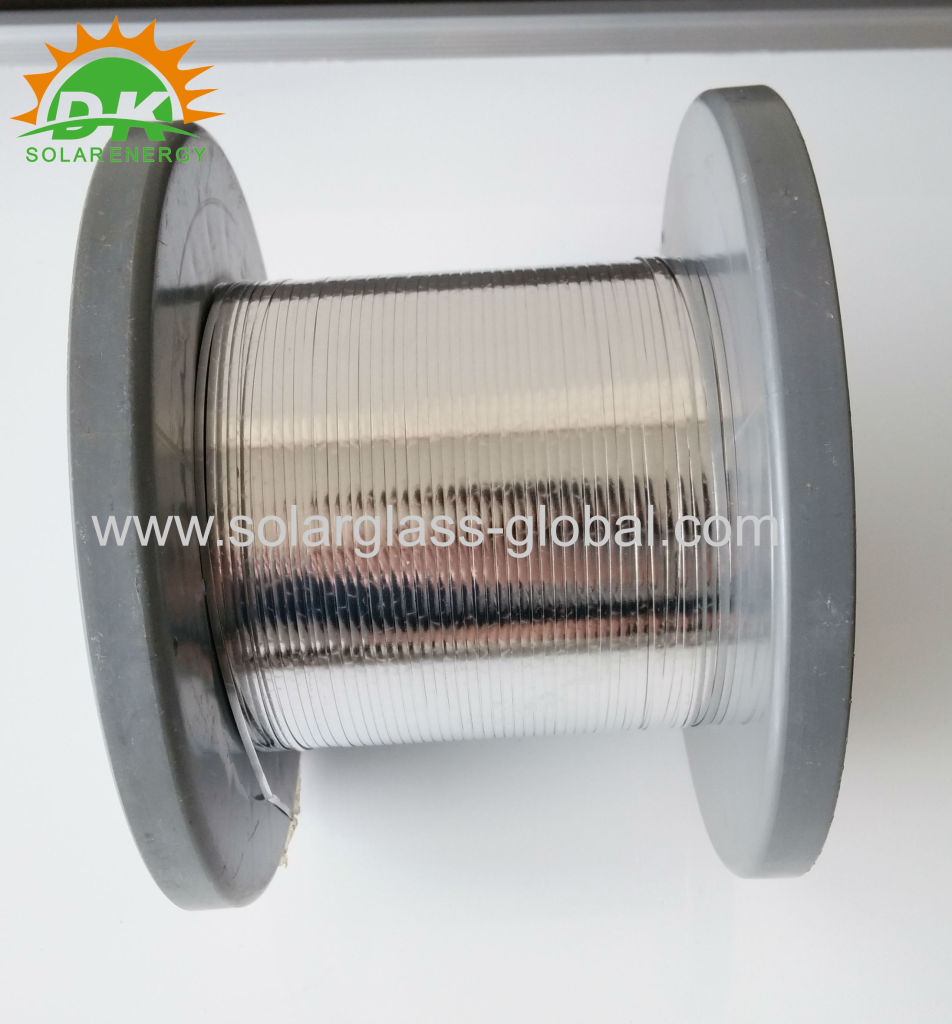

PV busbar products China PV solar ribbon

15.0 USD
Min. Order:
10 Kilogram
Trade Term:
FOB,CFR
Payment Terms:
L/C, T/T, WU
Place of Origin:
Zhejiang, China (Mainland)
Means of Transport:
Ocean, Air
Production Capacity:
3T one day
Packing:
paper carton with...
Delivery Date:
3-15 days after...
Application:
Solar Thermal
Type:
soldering ribbon
Pipe Material:
Copper
Brand Name:
DK
SIZE:
5*0.2MM
Materials:
Copper wire coated by tin
Customized:
Customized is available

  • Product Description
  • Related Products
  • Related Links
  • Automatic welding interlink strip

    1.Environmental protection PV Ribbon has already passed SGS test with Europe Union RoHS directive standards.

    2.Copper:oxygen-free copper wire planish,

    Contain copper quantity≥99.97%,Conductivity≥100%

    3.Copper electrical resistivity:Oxygen-free copper≤0.0165Ωmm²/m

                                    T2 copper≤0.0172Ωmm²/m

    4.Component:63%Sn37%Pb,60%Sn40%Pb (TM-A)

                 96.5%Sn3.0%Ag0.5%Cu,99%Sn1%Ag (TM-B)

                  62%Sn36%Pb2%Ag (TM-C)

    5.Solder tin melting point:179~217℃

    6.Tensile strength:≥200N/mm²

    7.Extensibility:≥25%

    8.According to customer requirements,we can provide different chemical coating and different sizes of products



    Hand welding interlink strip/bus bar

    1.Environmental protection PV Ribbon has already passed SGS test with Europe Union RoHS directive standards.

    2.Copper:oxygen-free copper wire planish,

    Contain copper quantity≥99.97%,Conductivity≥100%

    3.Copper electrical resistivity: Oxygen-free copper≤0.0165Ωmm²/m

                                    T2 copper≤0.0172Ωmm²/m

    4.Component:63%Sn37%Pb,60%Sn40%Pb (TM-A)

                 96.5%Sn3.0%Ag0.5%Cu,99%Sn1%Ag (TM-B)

                  62%Sn36%Pb2%Ag (TM-C)

    5.Solder tin melting point:179~217℃

    6.Tensile strength:≥200N/mm²

    7.Extensibility:≥20%

    8.According to customer requirements, we can provide different chemical coating and different sizes of products

    High quality Solar ribbon


    PV copper base material with high purity TUl oxygen-free copper(copper content≥99.97%,conductivity≥100%,resistivity≤0.0165Ωmm²/m),through the strict production process:Rolling→Surface cleaning→Hot tin-plate→Spool/Round plate/Fixed-length cutting,that finished the PV ribbon product.


    PV copper(normal)Physical                      PV ribbon(normal) Physical

    1:Tensile strength:≥200N/mm²             1:Tensile strength:≥150N/mm²

    2:Yield strength:≤60N/mm²                 2:Yield Strength:≤60N/mm²

    3:Extensibility:≥25%                        3:Extensibility:≥20%

    4:Vickers hardness:≤45Hv



    Product size
