150w poly solar panel

Model: DK190
Place of Origin: Zhejiang,China (Mainland)
Application: Solar Thermal
Type: Flat Panel
Pipe Material: Glass
Brand Name: Dongke
150w solar panel glass: anti-reflective solar panel
Material: Polycrystalline Silicon
Size: 1482*678*35mm
Number of Cells: 36(4*9pcs)
Cell size: 156*156mm
Max. Power: 150W
Optimum Power Voltage: 17.92V
Optimum Operating Current(Imp): 7.83A
Front Glass: 3.2mm, Low Iron,Tempered Glass
Junction box: IP65 Rated

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:0.5~0.65 USDProduction Capacity:300000 watt/watts per...
Trade Term:FOBPacking:2pcs in one...
Payment Terms:L/C, WU, T/TDelivery Date:within 15 days after...
Min. Order:1000 watt/watts
Means of Transport:Ocean

Product Description

150w anti-reflective poly solar panel

 Technical parameter

Maximum Power(W)                           150W
Optimum Power Voltage(Vmp)           17.92V
Optimum Operating Current(Imp)        7.83A
Open Circuit Voltage(Voc)                 21.86V
Short Circuit Current(Isc)                     8.59A

 Mechanical Characteristics

Cell Type Polycrystalline                 156x156mm (6 inch)
No of Cell                                         36 (4x9pcs)
Dimensions                                       1482x678x35mm
Weight                                              11.9KGS

Front Glass

3.2mm,High Transmission, Low Iron,Tempered Glass
Junction box                                        IP65 Rated
Output Cable                                      TUV 1x4.0mm2/UL12AWG,Length:900mm

 Temperature and Coefficients

Operating Temperature(°C):                 -40°C ~ + 85°C
Maximum System Voltage:                    600V(UL)/1000V(IEC) DC
Maximum Rated Current Series:         15A
Temperature Coefficients of Pmax:     -0.435%
Temperature Coefficients of Voc:        -0.35%
Temperature Coefficients of Isc:           0.043%
Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

150w poly solar panel

Application

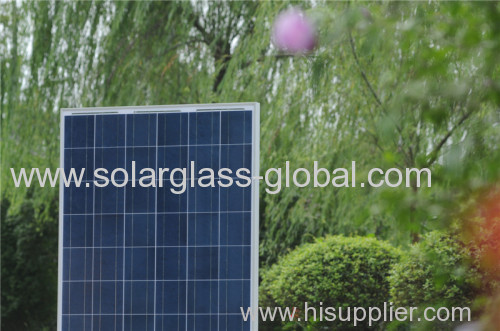

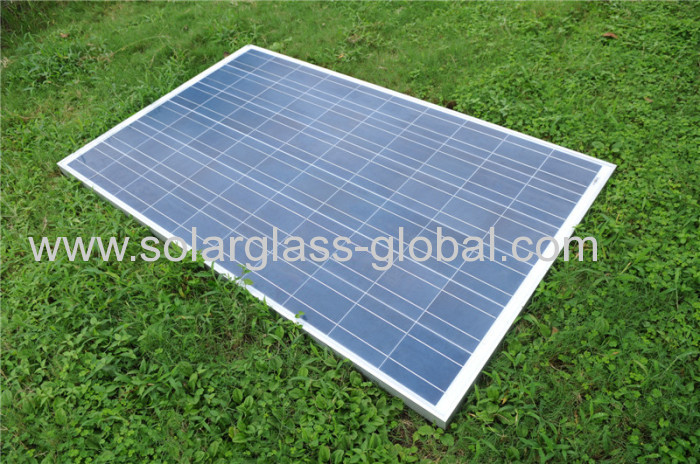

Products picture:

50w anti-reflective tempered solar panel glass50w anti-reflective tempered solar panel glass

Packaging & Shipping



Our Services

 1.Reply your inquiry in 24 working hours.

 2.Customized design is avaliable ,OEM is welcome .

 3.Delivery the goods to our customer all over the world with speed and precision.

 4.Offer customer the products with good quality and competitive price.
