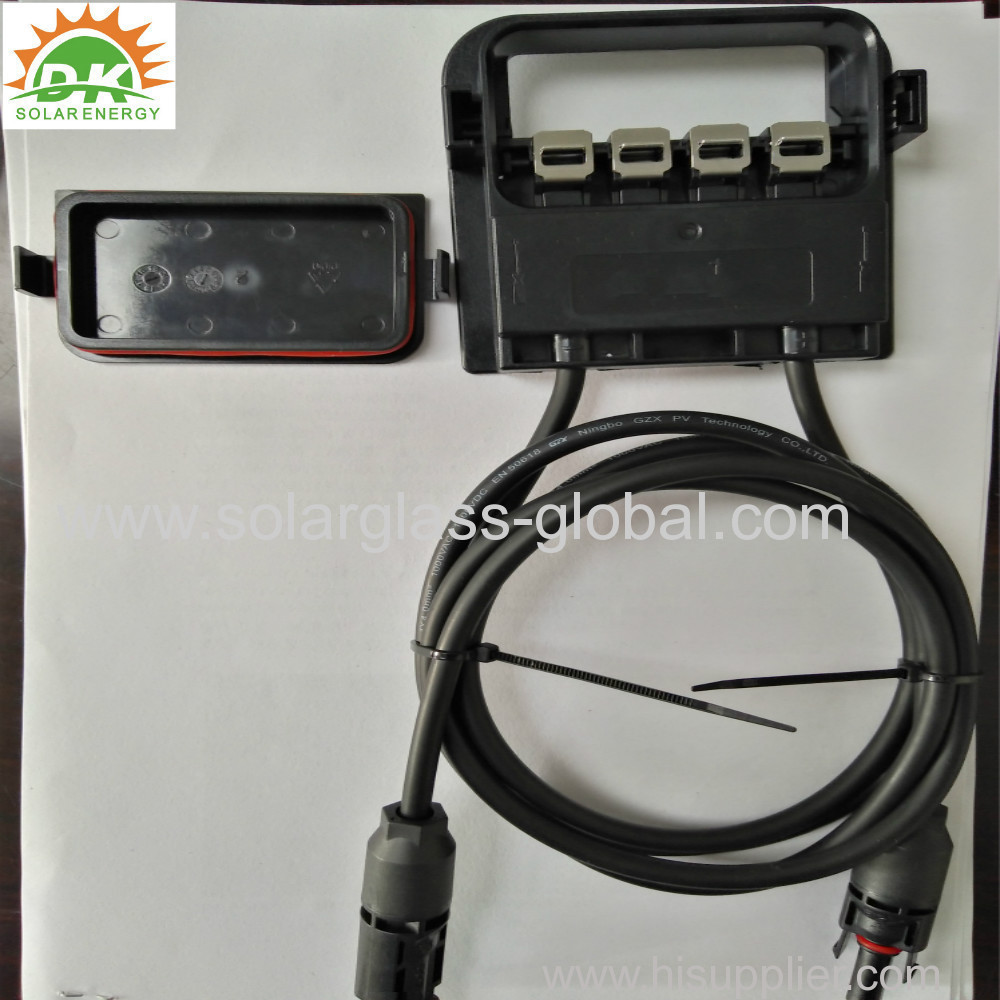

    PV box is adopts Spring Clamping design. This junction box can be used for Poly/Monocrystalline (both 5inches and 6 inches) PV module which has high power. Meanwhile, this junction box can reduce PV module's power consumption and improve electrical reliability.

    Technical Data:

    l Rated Voltage:                    1500(V)

    l Max. working (module) voltage       100(V)

    l Rated Current :                    15A

    l Temperature Range :              -40℃~+85℃

    l Safety Class:                      Class II

    l Waterproof Structure:               Sealing ring

    l Protection Class :                   IP67

    l Cable Cross Section Range:         4.0 mm2

    l Width of Ribbons:                  Up to 8mm

    l Connection method of Ribbons:      Spring Clamping

    l Centerline Spacing of Terminals:     16mm

    l Contact Material:                   Copper,Tin-plated

    l Insulation Material:                 PPO.PPE

    l Overall Dimension:                 138*137*26mm

    l Optional Connector:                PV-GZX1500

    Remarks:

    l PV module's ribbon alignment must be complied with JB's terminals.

    l Adhesive and sealing compound must be applied by using specific type and specification. Make sure JB will be fixed by the correct position and reliable sealant.

    l Don't move PV module or JB before adhesive and sealing compound solidify.

    l Adopt anti-static protection measures when touch JB.

    l To make sure the connection method between JB and PV module in the correct polarity. Otherwise, Wrong connection will cause fire.

    l Due to the diodes might be damaged by heat temperature or the static shock. PV module manufacturers should inspect the diodes of junction box before shipment.

    l Installation or maintenance should be operated by the professional personnel.

    l For protection against electric shock, while being assembled or disassembled, makes sure connectors isolated from the power supply.

    l Don't connected or disconnected under load.

    l During the assembly process, keep the connector away from any corrosive materials.
