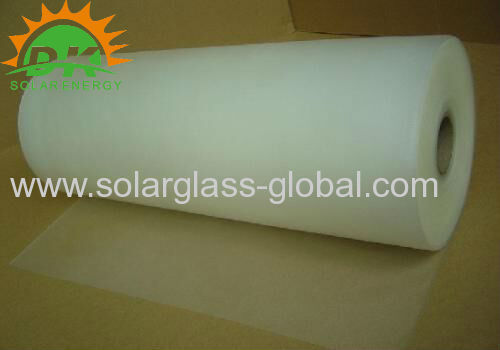

0.45mm Solar EVA film
  • 0.45mm Solar EVA film
  • 0.45mm Solar EVA film
  • 0.45mm Solar EVA film

0.45mm Solar EVA film

130.0 USD
Min. Order:
100 Square Meter
Trade Term:
FOB
Payment Terms:
T/T
Place of Origin:
Zhejiang, China (Mainland)
Means of Transport:
Ocean
Production Capacity:
300000
Packing:
paper carton
Delivery Date:
5-10days after receive...
Brand Name:
DK
SIZE:
0.45MM*1M*100M
material:
Eyhylene Vinyl Acetate
Curing temperature::
135-140 degree
Certificate:
TUV
Shelf life::
6 months
Solidify time::
10-15 minutes
Usage:
eva solar film for solar panel encap
Vacuum time:
4-6 minutes

  • Product Description
  • Related Products
  • Related Links
  • 0.45mm Solar EVA film


    Specification



    Please find EVA Solar Module Film Details below:



    Item Name EVA Solar Module Film
    Thickness (mm)0.30-0.50 mm
    Width (mm)300-1000 mm
    Length per roll (m)100m, 150m



    Technical Data



    ItemUnit Fast Cure
    VA Contents VA%30
    Melting Point  ℃72
    Light Transmittance %>91
    Density g/cm30.96
    Specific Heat J/℃·g23
    Heat Conductivity W/mk0.3
    Glass Transition Temp ℃-40
    TensileStrength at Break (after cross-linking) Mpa 20
    Water Absorption %0.01
    Cross-linking rate %>80
    Adhesive Strength(First EVA-Glass)N/cm>40
    Adhesive Strength(First EVA-TPT)N/cm>50
    Light Resistance(UV Radiation 1000hr)%Retention>90
    Damp Heat Test(1000hrat+85℃,85%RH)%Retention>88
    Shrinkage Rate(120℃,3min)MD%<4.0

    CD%<2.0

    • excellent adhension after aging, guarantee the 25 years quality outdoor using.

    • low shrinkage , can guarantee the quality after lamination.

    • Fast Cure,Increase the producing rate when laminated.

    • Excellent weather resistance(Including high temperature and high humidity resistance

    and UV )

    • High transparence, insure the maximum power of module,deduct the cost of solar

    module investors.

    • Can good match with many different kinds of backsheet .


    Storage and using:

    1. store in cool and dry in the room temperature, temperature ≤ 30 ℃, humidity ≤ 70%; the shift time is

    six months; suggest use up within three months..

    2. product long-term stacking height, should not be too high, below five layer is ok ,it can

    avoid bending deformation under the heavy pressure.

    3. It is recommended that do not use the innermost and outermost circle,

    4. don't make the product moisture, after opening the roll or cut a good film, is proposed use up within

    48 hours .


    Pcaking and shipping
